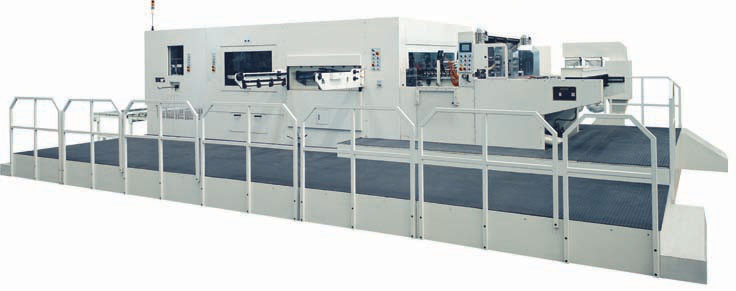

2100S Automatic Flatbed Die-cutting and Creasing Machine

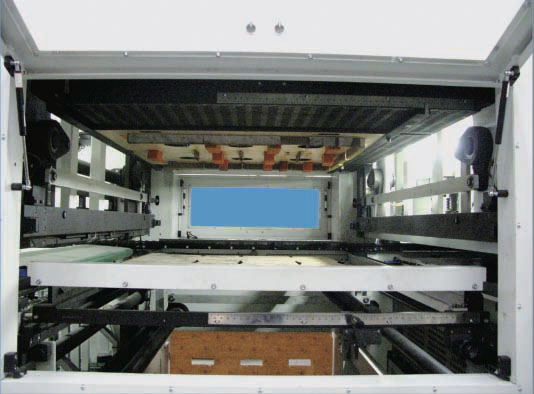

1. Stripping section

1). Centerline system with quick lock pins on upper frame

2).Centerline system compatible to Centerline II for quick stripping die set up.

3). Motorized upper frame suspending hoister up to 500mm

4). Lead edge removal system to remove gripper margin completely.

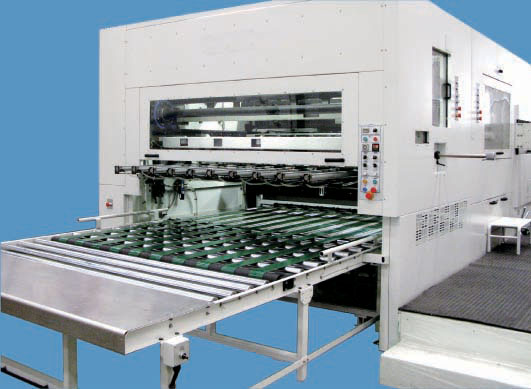

2. Delivery Section

1). Escalator delivery with non-stop air cylinder to protect the sheets from scratches

2). Non-stop batch counter bundle delivery to ensure continous productivity and operation efficiency.

3. Die cutting Section

1). 7pieces of gripper bar with 24 spikes per piece

2). Safely door and diechase saftely locking system to ensure safe operation.

3). Completely lost sheet control throughout the entire machine

4). Cneterline system compatible to centerline II for quick change over and short set up time

5). Air cushion underneath diecutting plate for easy cutting plate floating in and out

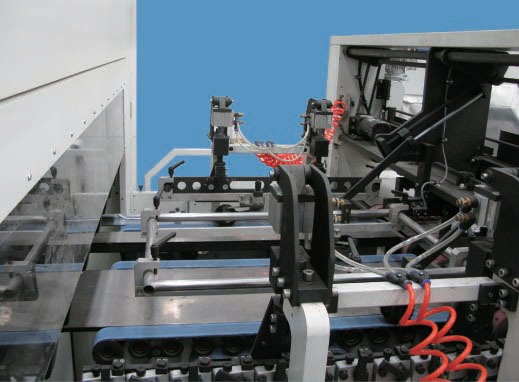

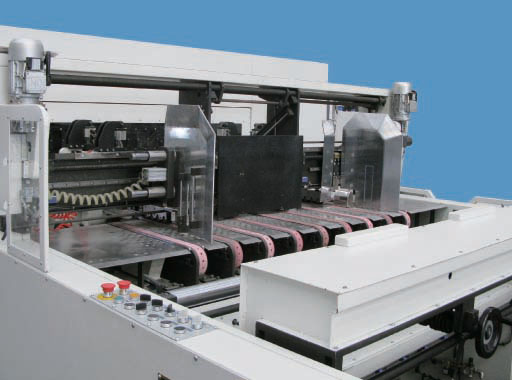

4. lead edge feeder

1). Dynamic torque servo motor driven differential speed belt lead edge feeder with extended feeding table and side alignment.

2). Imported top quality feeding belt for handling of warp corrugated boards.

3). Pneumatic side push jogger(left and right side).

5. Front lay with slow down and alignment guiding roller

1). Sheet arrives at front lay with servo motor controlled slow down action for precise registration.

2). Side alignment system to ensure the accuracy of side register.

Specification:

Max sheet size	2100×1300mm
Min sheet size	850×600mm
Max cutting size	2080×1280 mm
Inner chase size	2110×1330mm
Max mechanical speed	4500cycles\h
Max cutting pressure	500 tons
Stock range	E,B,C,A and AB flute corrugated board
Cutting rule height	23.8 mm
Min gripper margin	15mm
Total power required	50KW
variable speed main motor power	30KW
Air pump displacement	0.7m3\min
Mobile lower platen adjusting range	±1.5mm
