The Appliance and Characteristic ：

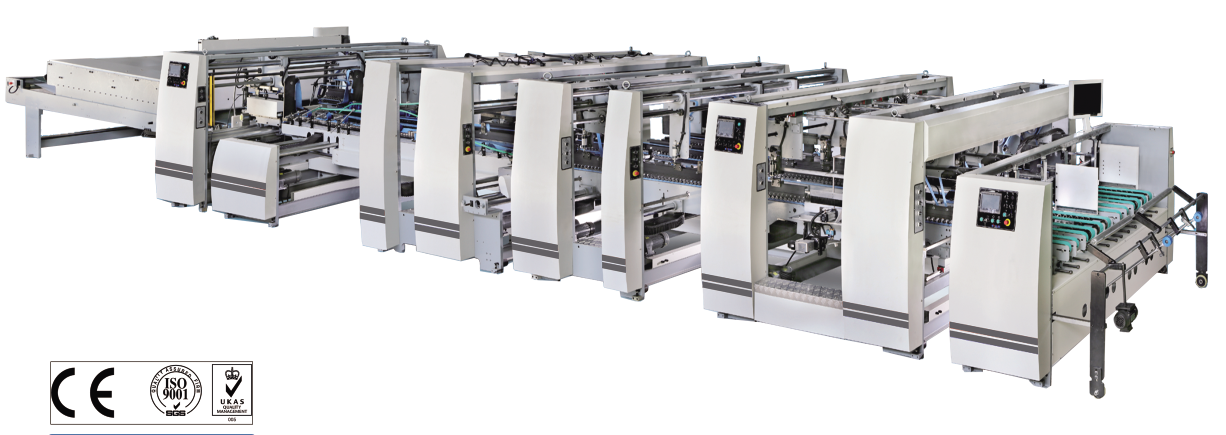

1. We carefully researched the two-piece connected colorful corrugated folder gluer machine for Chinese market. This kind of machine not only adopts single piece feeding ,but also adopts two-piece connected feeding. In order to avoid the limited of front printing equipment process,this machine save labor and save materials. This machine to avoid the limited of front printing equipment process,this machine save labor and save materials. This machine efficient production,reduce labor costs.

2. Two-piece connected colorful corrugated folder gluer machine,consists of two-piece feeding system,servo positioning regulating connecting system,folding system,transmission pressing edge correcting system,patting  pressing conveying system. No matter it is flat box or abnormal box,transverse corrugated,vertical corrugated paperboard,all can be precise glued and formed in a high speed at a time.

3.  When using single piece feeding system,can be used as general folder gluer machine .

4. When using single piece feeding system,can be used as general folder gluer machine .

1. Feeder unit

Double servo synchronized feeding paper system

Vacuum suction belt,ensure cardboard conveying accurate and stable

2. Connection unit

Four groups of servo push back positioning system,ensure cartons,ensure the carton height precision .

Two groups of pneumatic side positioning system,ensure  the precision of carton connection mouth.

Two pieces conveying and connected during conveying,

PLC and human-computer interface control , ensure connection precision .

3. Bottom glue

Equipped with four groups of front hook modules,to realize bottom folding function.

4. Folding unit

Special super long folding module,ensure paperboard natural forming after full stretch in this function,left and right conveyor belts speed is adjustable,can correction cartons again

and ensure conveying in straight line.

5. Trombone unit

Upper and lower belt can move forward and backward to adjust.

Equipped with trimming correction device

Paper jammed detection device

6. Conveyor unit

Patting,correcting and positioning before enter collecting paper unit ,to make sure Patting,correcting and positioning before enter collecting paper unit ,to make sure
