Card Board Laminator
Name:  Card Board Laminator
Sort:   Flute Laminator Series
Sort ID:   1210
Click:  7505  Times
Product Info:

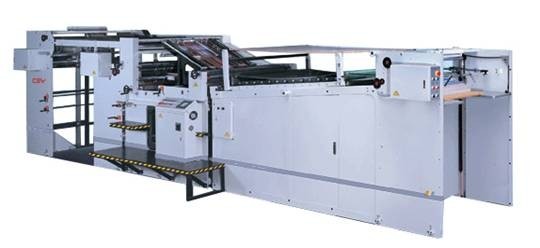

Card Board Laminator


1210 Card Board Laminator


Aligning mechanism:
Innovative dynamic aligning, synchronized laminating mechanism: Utilizing the speed
difference between the faster conveying and front stopper to advance the moving paper
to reach the front stopper, and the sides are synchronized to front stopper. The shifting
side stoppers are uses to align the two papers during moving, Transmission system;
The planet transmission system allows even distribution in power transmission. The
whole equipment is in timing belt transmission, free of servicing, low noise and high efficiency.

Low frame E style pallet loader:

Low frames E style design. for the convenience of pallet truck feed paper, railway
track loader is available .

Paper feeder:

The newly developed front-top suction feeder, feeding paper speedy and smooth
which needs no adjustment. Green hand can operate without intensive training.
No suction mechanism on the paper stack . offering obstacle operation space.
The equipment has been granted with invention Patent of Taiwan ( Pat.No.127087),
and is applying patent rights to advanced countries in the world.


Vibro-Loose Collecting Mechanism: Capable of loosening the mullet-laid finished
products and push neat and ensure smooth collection of paper. E-type holding plate
and high speed elevator can rapidly and conveniently pull out the finished products
and increase the working efficiency. (Pat.No.098716-052346)

Press conveyor:

Electrical calibration of revolving speed and press-length allows easy dimensions
switching. It can press laminated paper in multiple layers, and speed up the revolution
with the paper pressed individually. The increased roller set can apply repeat heavy
press on the individually pressed thin paper laminated products, to make the finished
products even smoother and more perfect.

Perfect control system:

3 sets dialogue windows: Including man machine interface, voice alarm and lamp
Indicating PLC. They can detect operation condition, irregularities, maintenance and
working record automatically, Selected electric control elements from Europe, USA.
Japan and Taiwan incorporated with fine craftsmanship perfect the operation and safety.

Bottom Gummed:

Specially designed high precision coating mechanism; The precision of the upper
glue roller and glue adjusting roller is less than 0.01m/m, and the minimum glue
coating volume can be adjusted to 0.02m/m, and it can be accurately adjusted to

different type of papers to ensure even coating of glue. Convenient paper releaser:
Releasing the paper from glue roller, also for convenience in dismantle, cleaning
and calibration of the glue roller. (Pat.No.107087)

Delicate Side Glue Stopper:

The stopper can rub back the glue to the roller, so that the high-speed roller side
will not have glue over-flown. It can also adjust the back flow glue so to ensure the
coating function of the device. (Pat.No.90265)




Max. Sheet (mm)

1200 x 1000

Min. Sheet (mm)


Thickness of Upper Paper(g/m2)


Thickness of Bottom paper (g/m2)


Speed of Lamination (pcs/min)


Laminaer Error (m/m)


Total Weight (m/min)


Total Length (m)


Operation Space(m)



200v/380v 3(15hp)
