General Introduction As European models, XHBC1050 series punching & die-cutting machine, die-cutting & stamping machine, and holographic positioning & stamping machine feature high precision, high speed, durability and stable performance.They adopt international leading configuration and have come up to international leading level in performance.
Construction: On the basis of XHBC-1050 automatic diecutting and creasing machine XHBC-1050 automatic diecutting and stripping machine is mainly used for the diecutting, creasing, stripping, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries.This kind of machine is incorporated with fully automatic feeding, diecutting, stripping, delivering counting, obstacle indicating, checking and meas-uring. It has the features of easy operating, reliablity, high speed and precision.
Main configurations Feeder:
The design of feeder is efficient, stable and ingenious, the feeder is equipped 8 suckers andfour for separator, four for transporter so that the process is stable and the device is suitable for different paper. Special helical back blowing,front and side blowing make the running stable and avoid the double sheets case. Each sucker is individual so that the adjustment is easy and the paper can be transported successfully.
Oblique Feeding Table:
The running of oblique high speed feeding device is stable and the device is equipped reliable double sheets detector. The non-stop main or vice feeding program can save the working time, make the operation easy and increase operating efficiency.
Die-cutting Device:
Up-down plan tables adopt accurate grinding processing to assure the precision of working surface. Integral molding frame will not change its shape easily. It adopts the pneumatic locking design to make the running safe and easy. Bottom steel board HRC50-53 is plan, rust-proof, precise and wearable. The rotation mechanism is safe and its operation is easy.
Stripping Device:
Three parts cooperated with each other, up、middle、down driving cam, finish stripping. The device makes the running stable precise,the loading and discharging quick and adjustment easy.
Delivery Unit:
Automatic non-stop delivery can save the working time and increase the work efficiency. The safe, stable and reliable delivery detector can protect the machine and production.
Die-cutting Frame:
Adopts self-locking design for die-cutting frame to improve safety and facilitate operation;Adopts unique gripper positioning materials and cam motion curve to ensue higher precision and lower noise than similar products. Die-cutting frame adopts integrated structure and thus features high strength and high precision, and the backplate is made of stainless steel and thus features durability and attractive appearance.Bottom die adopts HRC50-53 stainless steel plate, thus ensuring high precision and durability.
Model |
1050S |
Max. Paper Size(MM) |
1050×740 |
Min. Paper Size(MM) |
400×360 |
Paper Thickness(g/m²) |
80-2000 |
Corrugated Paper Thickness(MM) |
≤4 |
Max. Speed(S/H) |
7500 |
Max. Pressure(T) |
300 |
Min. Holding Width(MM) |
9.5 |
Max. Punching Size(MM) |
1040×730 |
Diecutting Accuracy(MM) |
±0.075 |
Power Required(KW) |
20 |
Total Weight(T) |
15.5 |
Machine Size(L×W×H)(MM) |
7×4×2.3 |

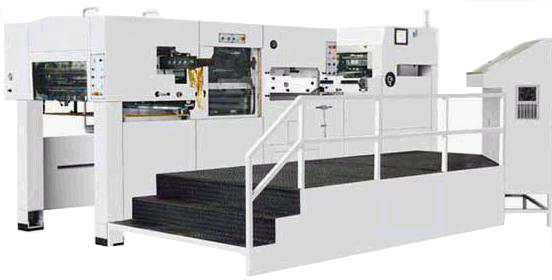

1050 series flatbed die cutting machine, die-cutting with waste removing, die-cutting with stamping, holographic counterfeit position stamping machine and holographic counterfeit position stamping and waste-removing machine belong to Europe model. Accuracy,high speed,durable and stable performance; adopt the most advance andmodern collocation,some parts up to the top; each performance reach international advance level. XHBC-1050SFL automatic flatbed die-cutting machine, mainly used for die-cutting of cardboard with high precision, press concave or protruding, the corrugated board thickness less than 4mm and plastic film board, stamping and holographic counterfeit icon position stamping.Special explanation:Because holographic electric aluminum tail after foil stamping,so there is definite requirement about cursor of holographic electric aluminum. The cursor of holographic electric aluminum adopts by customer must matching with the electric eyes of this machine. So before you order holographic electric aluminum, please do contact with our engineer,we will provide you free technical support. They will instruct how to choosing and how to operating the holographic electric aluminum.
Optiontal equipments 1050FL Fully Automatic Punching, Die-cutting & Holographic Stamping Machine. 1050SFL Fully Automatic Punching, Holographic Die-cutting, Foil Stamping & Waste- removing Machine.
Specification:
Max. Width of Foil Pulling |
1020mm(41″) |
Max. Width of Foil Stamping |
1020mm(41″) |
Max. Length of Foil Stamping |
730mm(28″) |
Max. Length of Foil Pulling |
700mm(27″) |
Max. God Foil roll diameter |
Φ240mm |
Temperature range of Foil Stamping |
0℃~200℃ |
Electro thermal plate heating area |
12 |
Electro thermal plate power consumption |
24kw |
Total power required |
68kw |
Max. Speed
of
Foil stamping |
6000S/H (Length of foil pulling once﹤200mm, Width of Gold foil﹥100mm) |
5000S/H (Length of foil pulling once﹤300mm, Width of Gold foil﹥100mm) |
3800S/H (Length of foil pulling once﹤600mm, st1:chmetcnv ,>, Width of Gold foil﹥150mm) |
3000S/H (Length of foil pulling once600mm~700mm, Width of Gold foil=150mm) |
Speed of the fastest holographic foilstamping |
5000S/H (Length of foil pulling once﹤100mm, Width of Gold foil﹥40mm) |
4000S/H (Length of foil pulling once﹤300mm, Width of Gold foil﹥40mm) , , |
3000S/H (Length of foil pulling once﹤500mm, Width of Gold foil﹥40mm) |
|
|
|
Max paper size |
1050×750mm |
Min paper size |
400×360mm |
Max cutting size |
1040×720mm |
Chase inner dimension |
1100×748mm |
Cutting steel plate size |
1080×736mm |
Suitable paper range |
80~600g/㎡ cardboard, corrugated board thickness﹤4mm |
Min holding width |
9.5mm(according to die-cutting product display,paper factor andoperation factor) |
Max mechanism speed |
7500S/H (according to die-cutting product display,paper factor andoperation factor) |
Max cutting pressure |
300ton |
Compress air pump |
Air compressor exhaust 0.8m3/min—provide for user |
Electric requirement |
380V 3phase 50HZ |
Whole machine weight |
17.3ton |
Whole machine dimension |
7016×4669×2230mm(L×W×H) |
Main configurations:
STAMPING SYSTEM: * Cool oil type foil passing tension shaft; * Fully computerized control setting foil stepping, skipping length, left foil alarm length, foil peeling air blowing time and other operation; * Four foil scroll shafts and four sets of holographic electronic eyes; * Each shaft is drived by big power servo motor(1.5KW) for stamping unit, can set individually programmable foil stepping, skipping is quick and accurate; * Equipped with foil breaking detector and brush wheel waste removing out of the machine is controlled by frequency conversion; * 12 heating zones, with constant temperature controlling function, can be individually controlled for each zone temperature; * Quick lifting and filling temperature in heating plate, it only takes 30 minutes to reach to the working temperature;
HONEYCOMB PLATE: Hot plate for this machine adopts imported carbon fiber heating fuses and external fiberglass protection, ensuring a service life of 10 years. Stamping section consists 12 heating zones, where temperature can be set based on different product requirements,thus ensuring product quality and reducing energy consumption.
FOIL STAMPING & FOIL-DELIVERING SYSTEM: Cooperating with the speed and length of foil-delivering, the torsion force of foil-collecting is adjustable, improving the Foil-stamping quality.
WASTE FLIL-STAMPING COLLECTING SYSTEM:
TOUCH SCREEN FOIL STAMPING OPERATION SYSTEM
Servo controls the Pressure Raising & Reducing of Foil Stamping machine: Servo drive steel ball screw rods control the Pressure Raising & Reducing, accurately & fast. Pressing force of 300 tons, up to which the machine stops automatically. |
