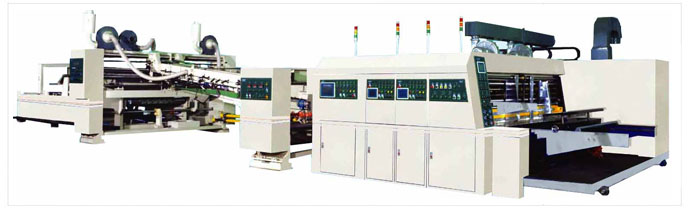

Automatic Flexo Printer Slotter Rotary Die Cutter and In-Line Folder Gluer

Machine functions:
Automatic Flexo Printer Slotter and In-Line Folder Gluer is used to form boxes after the corrugated board is slotted, so that manual gluing and folding are not needed. The machine consists of a gluing unit, auto matic laminating unit and counter ejector unit. After leaving the slotting unit, the gluing unit will supply glue to the corrugated board flap, and the laminating unit folds the board and laminates it . The edge pressing roller then presses the edges and the steel roller pre-presses it, then after folding, the corrugated boards are reshaped by a shaping board (patting the fronts and back of the boards). Following this, the counter ejector sends out the pile of cardboard and counts the quantity, then binds the pile of cardboard. The gluing, laminating and counter ejector workflow can improve work efficiency and increase the benefits of manufacturers through precise shaping after folding and precise operation of the counter and ejector unit.

Specification parameter formŁş

Automatic Flexo Printer Slotter Rotary Die Cutter and In-Line Folder Gluer
Model: 1220/1224/1226/1228FG

Standard equipments consists of:
Ł¨1Ł©Technical explanations of Lead Edge Feeder
Designed speed is rapid, less repair, safe and easy operation.
Decrease greatly the feeding jam.
Save production time for damaged paper.
Able to feed E flute(thin), transverse corrugated sheet, curved and low-quality paper board.
Inverter to adjust suction air pressure, suitable for different paper board.
Also suitable for skip feeding
Keep the front edge of the paper board as basic position to decrease the influence from long paper board greatly.
When paper board fed to pull rollers, it has same speed as that of pull rollers. No possibility to influence the paper board hand-over just due to speed difference.
Back support stand motorized adjustment.
Remarks: please forgive that we will not otherwise inform you our technical change in other aspect.

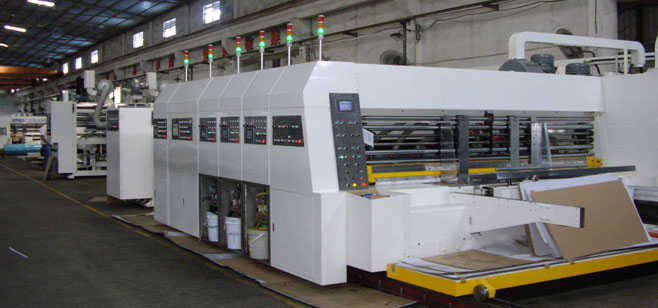

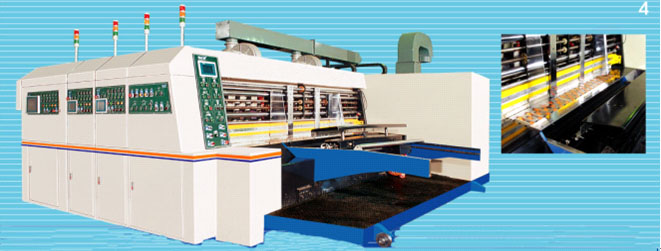

(2).Flexo Printing Unit:
Standard features:
1.Printing cylinder:
---Outer Diameter ¦µ407.6 mm (including printing plate thickness);
---Electronic running register with 360 degrees micro adjustment;
--- Cast iron (FC30) printing cylinder, processing and grinding after temper and chrome plating and
dynamic balance treatment; It can positive and reverse phase and 360ˇă motorized adjustment,
operation during running and stopping.
--- adjustment limit is within 25mm, micro adjustment; Axis distance for left and right movement 12.5mm
---Automatic zero positioning;
---Foot pedal control for hand plate mounting; Rotate printing cylinder.
---Manual nip adjustment between printing cylinder and pressure cylinder;
---Note: Half-plate groove provided only required.
2.Ink roller:
---Ceramic anilox roller;
---Outer Diameter of ink roller: ¦µ196.1mm;
---Precision treatment with S45C; The the number of anilox roller lines as per customerˇŻs requirements.
---Pneumatic disengage from print cylinder at machine stop;
---Manual nip adjustment with print cylinder;
---Micro adjustment for nip adjustment between ink roller and printing cylinder.
---The gap data can be read directly through the gap micro-adjustment device with ruler between ink
roller and printing cylinder.
3.Metering roller:
---Steel roller wrapped with durable rubber, outer diameter ¦µ196.1 mm;
---Micro adjustment with actual reading.
4.Pull rolls:
---Consists of One¨Cgroup pull rolls equipped with chrome-plated and harden treatment, one upper collars¦µ159.9 mm with shaft¦µ100 mm and one lower pull rolls¦µ159.9mm between unit;
---Micro adjustment for upper pull rulls nip setting;
---Micro adjustment for axis position of pull rolls.
---Regulator with sector for lower pull roll;
---Quick offsetting of pull collars.
5.Pressure cylinder:
---Chrome and harden treatment , diameter¦µ180.6 mm;
---Adjustment with accurate reading.
6.Ink supply device:
---Buzzer alarm to alert low ink level;
---Closed ink circuit with ink filter;
---Convenient Wash up system for ink change;
---Enclosed cover and ink reclaim groove to protect against dust and accidental damage.
7.Pneumatic lock up print units mechanism:
Motors and electric equipments:
---Motor for register adjustment (1/2Hp) with torsion of clutch brake;
---Motor for ink roll and metering roll idle running (1Hp), including 1 : 30 gear type speed reducer;
---Low ink level sensor;
---Operation and control panel.

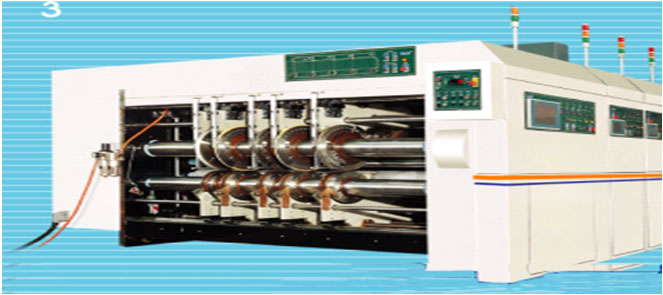

(3).Slotting Unit:
Standard features:
1.360 degree electronic running register adjustment for knife with actual reading.
---Position rotational setting of front knife and back knife for box cover position adjustment;
--- Auto rotational setting of front knife, and slotter creaser links transversal can be moveable;
--- Back knife rotational position setting for box height adjustment.
2.Slotting knives for standard thickness 7.5mm (Also at the buyerˇŻs option);
3.Creasing depth (gap) adjustable with scale;
4.Consists of 5 unit upper slotter-creaser link equipped with chrome-plated and harden treatment, creasing upper rolls(¦µ407.6mm) and shaft(¦µ160 mm).
5.Consist of 5 unit lower slotter-creaser link equipped with chrome-plated and harden treatment, creasinglower rolls(¦µ273.5 mm) and shaft(¦µ150 mm).
6.Consists of 1 unit pull rolls equipped with chrome¨Cplated and harden treatment, one upper collars¦µ93.2 mm with shaft¦µ60 mm and one lower pull rolls¦µ103.2 mm in between unit .
7.T-style design for slotting knife, thickness: 9mm.
8.Motorized transversal simultaneous adjustment for Slotter-creaser links with close safety control whenmachine stop.
9.Manual adjustment for upper and lower slotting knives nip setting.Motor and electric equipment:
---Four-sets motor (1Hp) for slotter-creaser links;
---Register adjustment motor 1Hp; Qty: 1pc
---Electro-magnetic clutch, 2.5kg-m, CD-J-2.5;
---Safety device for monitoring slotting and creasing knife position.
(4).Sheet stacker:
Standard features:
1.Max sheet size: 1600ˇÁ2800mm;
2.Min sheet size: 270ˇÁ580 mm;
3.Conveyer speed: 0~200m/min;
4.Max. pile height: 1900 mm;
5.Lifting speed: 8m/min;
6.Non-stop delivery with jogger movement;
7.Alarm with alert lamp and inching movement.
Motors and electric equipment:
---Motor 5 Hp for conveyor belt driver;
---Motor 5Hp with worm gearing 1:60 for pile up/down.

Ëġ˘Upper gluing unit:
Motorized upper gluing unit and human-interface input controls.
Gluing roller works at the same speed as the main machine.When the machine stops,the gluing roller runs by itself so that the glue on the roller will not dry

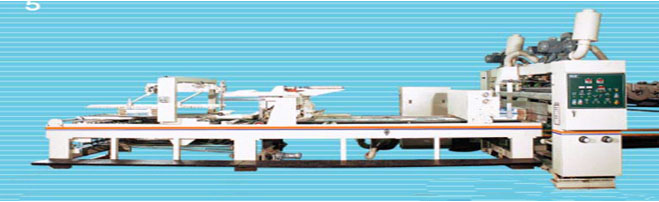

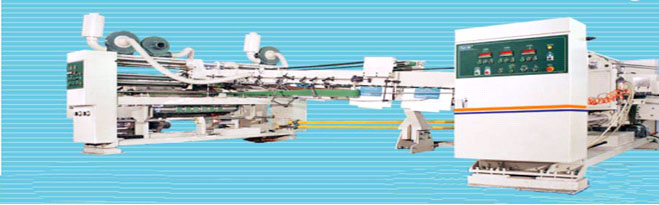

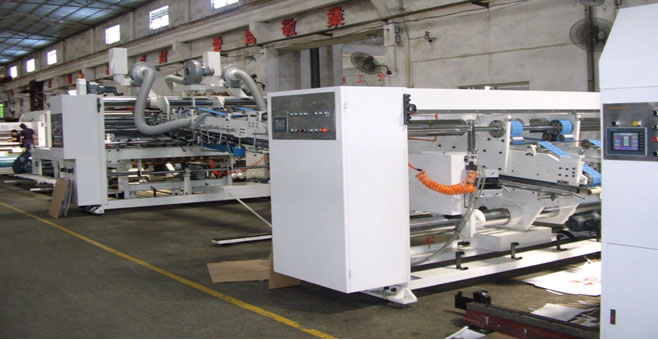

Î塢Folding unitŁş
Motorized movement of folding beam,controlled by interface.
Front and back transmission shafts are located on top of folding beam to save space.
Adjustable folding pole to adjust to different corrugated boards.
Springy upper belt pressure roller avoids loss of hardness in corrugated cartons.
Lower synchro-belt allows corrugated boards to go in smoothly.
Corrugated carton guiding square and side roller.
Áůˇ˘Auto StackerŁş
Air blower blows the boards down,while front patting boards make the front and back flat and neat.
Motorized adjustment of left and right side of stacker so that corrugated cartons are piled in the middle.
Motorized movement of front and back stop board.
Ćߡ˘Counter EjectorŁş
Piles of 10-40 cartons can be set and sent out.
Board lift roller device for easy insertion of corrugated cartons at a later time.
Motorized adjustment of the height of sheet pressing frame.
