SL Auto Feeder Machine

Auto Feeder is a perfect assistant equipment of featuring efficient, high speed and labor economizing for
Automatic Printer & Creasing Machine. It makes big and high speed Printer&slotter running normally,and raising efficiency.

Auto Feeder is made up of seven parts: lifting section、 horizontal convey section、 frame、hydraulic system、
longitudinal flapping meahanism、 sliding roller and moving mechanism.

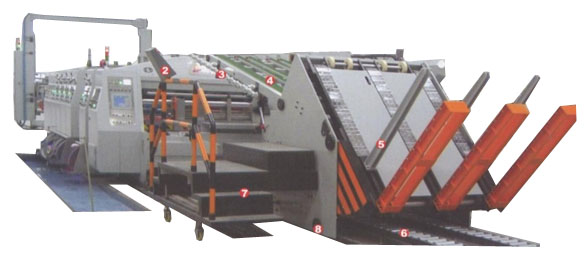

Configuration

1.         Side baffle adjusted by motor according the width of paperboard.

2.         Easily operation and conveniently.

3.         Supporting rollers adjusted according the width of paperboard.

4.         Horizontal convey belts controlled automatically with firequency conversion.

5.         Forks pushing paperboards forward automatically.

6.         Sliding rollers fixed on the ground.

7.         Working table

8.         Moving mechanism in step with printer.

9.         Electric control system with PC of Mitsubish and imported electric elements including frequency
conver sion.

10.     Hydraulic driving system.

MAIN SPECIFICATION

Subject to change and improvement without notice
