Ⅰ、General Specifications:


1、Speed, Maximum：60 m/min
2、Effective Width：1600 mm
3、Flute Type：E flute .
4、Steam Consumption：350 kg/h.
      Steam pressure：1.1-1.2 MPa.
5、Power requirement：～ 35 KW ，～380V, 50HZ
6、Single facer machine, approximate overall length：~14 m
7、Note: Buyer confirm the flute as below specification:(necessary)
               Flute type：　　Type
               Flute Height：　 MM

General Specifications:
1、Mechanical Shaft-less Mill roll stand

2、Chucking of paper roll, lifting up and down movment, left and right movement are mechanical gear
      driven.
3、Paper roll size: Φ1500mm×（1600mm-800mm），Manual braking is provided.
4、Maximum loading of paper: 2000kg per arm.
5、Each arm is equipped with one track of shuttle car for moving paper roll chucking position, so, total 2
      rails of track and 2 units of shuttle car, One set of paper roll changer.
6、Chucking head is using “Expandable chucks”, 2 units on each arm will be provided. Total 4 units of
      expandable chucks. They will eventually reducing the waste

Ⅱ．Vacuum, Fingerless Single facer

1、Vacuum,Fingerless Single facer(top cover), Corrugating roll diameter 260 mm, Material 42 CrMo alloy
     steel, Multiple hardening and refine grinding. Final hardness HRC 55~60.
2、Intermittent lubrication with automatic circulation for appropriate lubrication.
3、Paper guide rollers, Preheater rolls, Pressure roll are undergoing with hard chroming and finishing
      with grinding.
4、Anilox glue roll with hard chroming, pneumatically glue pan and motorized doctor roll fro smooth glue
     application.
5、Variable speed main motor for smooth operation.
6、Heating medium: steam.
7、Pressure roll diameter 260mm, hard chroming and finishing with grinding.
8、Flute type: UV type, selectable for any one of the type. F flute, Height= 0..8 mm. Please refer to page 2

9、High pressure vacuum blower that equipped with silencer, low power consumption.
10、Machine control console for easy operation.
11、Main electrical parts are made of France, Telemecanique LC model.
12、Spare parts come with machine:
       a、Silencer
       b、Rewinder
       c、1 set of knives for Rotary cutter, upper and lower knife 1 each.
13、Machine steam supply and pipe work up to machine steam inlet will be buyer responsibility.
14、Steam rotary joints and flexible hoses are made in China, ShangDong, TengZhou supply.

Ⅲ．Mecahnical Rotary Knife Machine

1、Maximum production speed：60m/min。
2、Maximum width：1600mm。
3、Power consumption：3kw。
4、Machine using stepless variable gearbox for stepless variation speed for rotary knife rotation control,
      which is adjustable to have cut length and width set up accordingly.
5、Upper rotary knife drum and lower fixed knife, simplified structure construction for easy adjustment
      and machine maintenance.
6、Knives are made special alloy steel and cutting edge hardness achieved at HRC 6C for long lasting life.
7、Paper infeed rollers are made to dynamic balancing for accurate paper feed to achieve good cutting
      accuracy.
8、Cut length accuracy：±2.5mm .
9、Cut length range, buyer allow to select one of the below range to meet their daily need: 400mm-1600mm .

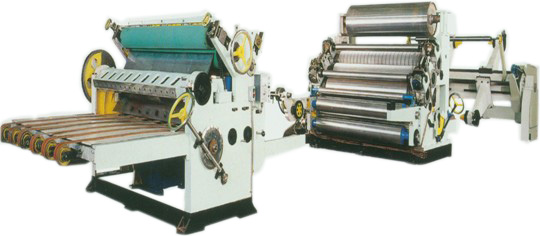

10、Single face paper output conveyer is provided. However it is no shown in the above photo.
