Semi-automatic Flute Laminating

Name:  Semi-automatic Flute Laminating
Sort:   Flute Laminator Series
Sort ID:   TMB-F Series
Click:  6854  Times
Product Info:

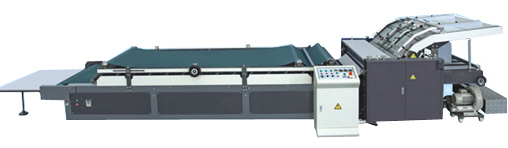

TMB-F Series Semi-automatic Flute Laminating Machine (single labor)

Features:

1.Turn up bridge plate is convenient for cleaning, discontinuous water-circulating system ensures washing clean

2.Automatic feeding for bottom sheet, manual feeding for top sheet (feeding from side for top sheet is optional)

3.Flexible front register, bottom sheet is not exceeding the top sheet, and it's adjustable for the front-and-rear
   lamination between bottom sheet and top sheet

4.Bottom sheet can be paperboard more than 300gsm, A/B/C/D/E corrugated cardboard

5.Movable lengthened pressing section is optional for corrugated board thicker than B flute, and its length is
   more than 800mm

Optional:PLC integrated program module control.



Technical  parameters:

Model

TMB-1000F

TMB-1300F

TMB-1450F

TMB-1600F

Max paper size

1000×1100mm

1300×1100mm

1450×1100mm

1600×1100mm

Min paper size

320×450mm

320×450mm

320×450mm

320×450mm

Total electric consumption

7kw

7kw

7kw

11kw

Speed

0-90m/min

0-90m/min

0-90m/min

0-90m/min

Weight

3.2t

4.2t

4.8t

5.5t

Overall Dimensions(mm)

7400×1530×1400

7400×1830×1400

7400×2080×1400

7400×2250×1400
